The KM Industrial is a dedicated agricultural service enterprise based on SEDLIN technology and
production, It’s located in the beautiful Hangzhou.
This machine is adopting air suction drum precision sowing method. The whole machine line including tray filler, hole drilling, sowing, casing soil and watering realizes sowing and seedling automatic machine line production through employing Optical-electro-mechanical Integration control, trayless detection innovative technology.
| Model No. | 2YB-G500 |
| External Dimension (L x W x H) (mm) | 7230 x 760 x 1300 |
| Seeding Accurancy (%) | ≥98 |
| Empty cell Rate (%) | ≤1 |
| Productivity (trays / h) | ≥500 |
| Damaged seeds Rate (%) | ≤0.1 |
| Electrical Power (KW) | 2.5 |
| Voltage (V) | to be confirmed |
| Weight (KGS) | 635 |
| Rowing Style | Automatic Air Suction Drum |
| Air Pressure (Mpa) | 0.4 – 0.8 |
| thickness of substrate | 20 – 120 mm |
| thickness of soil | 10 – 20 mm |
| type of drive | electrical motor |
| Suitable sizes for seedling tray | Width: < 350mm |
| Height: < 100mm |
Functional feature
Application
2YB-G500 drum seedling machine line is suitable for seedling of vegetables and flowers in the industry of simple & efficient agriculture. The whole line works automatically and continuously including tray filler, hole drilling, sowing, casing soil and watering.

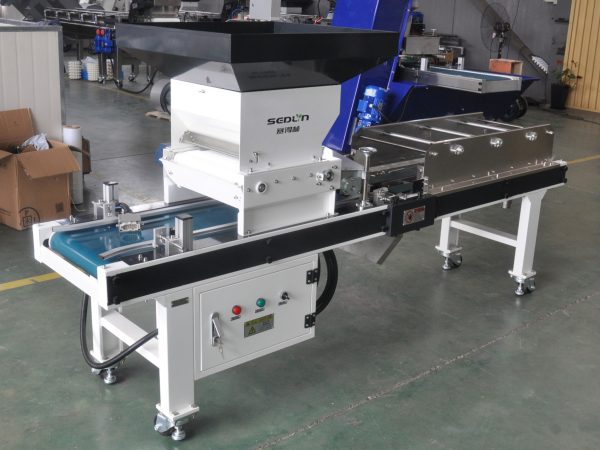

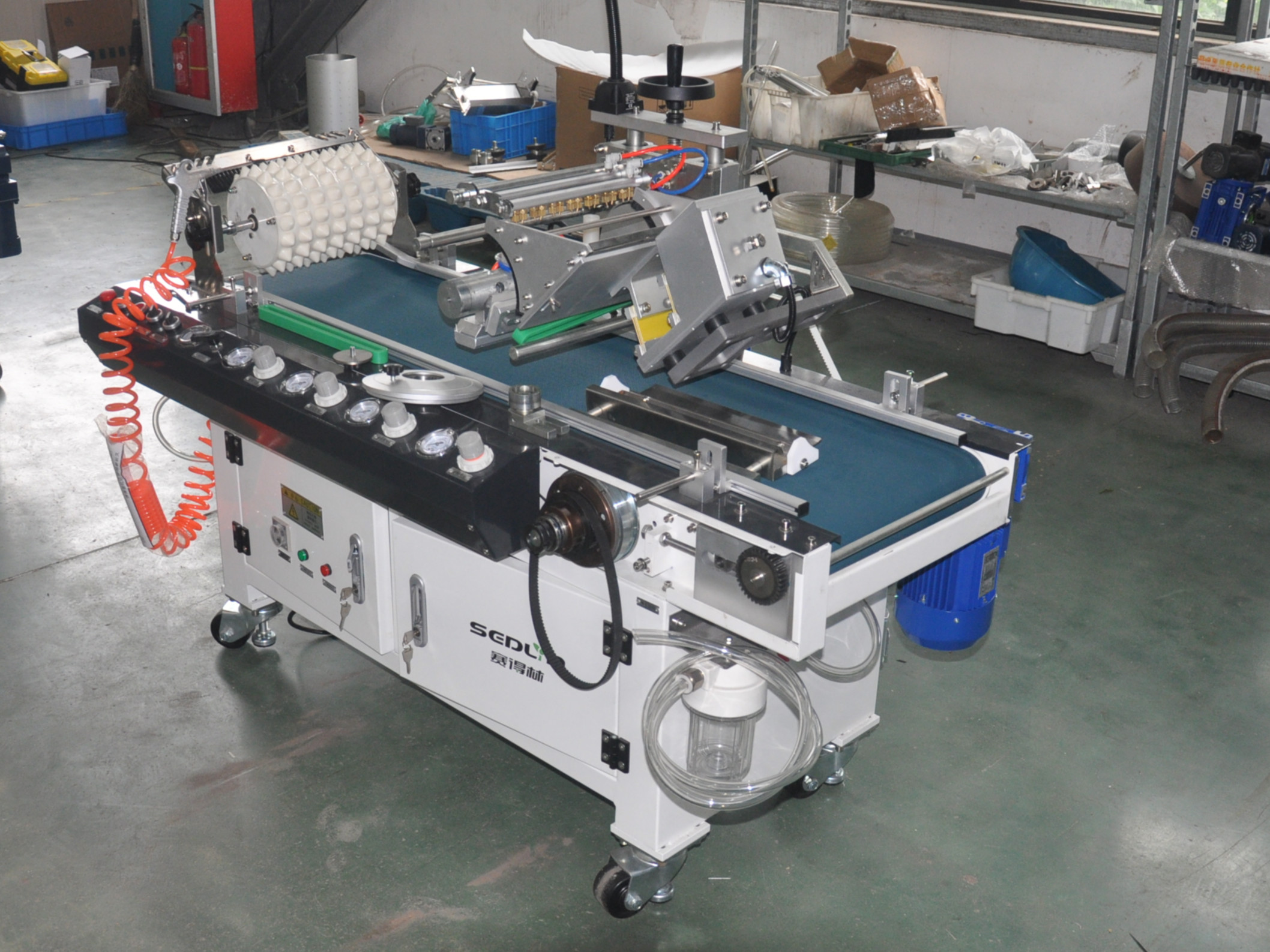

Physical Show
 |
 |
 |
 |
Product details
The KM Industrial is a dedicated agricultural service enterprise based on SEDLIN technology and production, It’s located in the beautiful Hangzhou.
