This machine is mainly suitable for small size industrialized seedling cultivation base which is for vegetable, Flowers & plants, cigarettes & tobacco etc. It’s adopting air suction drum precision sowing method, That can finish hole drilling, Sowing itself etc. The speed of sowing is fast with high precision. It has excellent product cost performance.
| MODEL NO. | 2YB－G500－2 |
| OVERALL SIZE（L×W×H），mm | 1500mm×760mm×1120mm |
| SEEDING RATE (%) | ≥95 |
| EMPTY CELL RATE (%) | ≤2 |
| PRODUCTION RATE (TRAY/h) | ≥200 |
| DAMAGED SEEDS RATE (%) | ≤0.5 |
| Electrical motor power (W) | 850 |
| VOLTAGE (V) | to be cinfirmed |
| WEIGHT (KGS) | 200 |
| 排种器形式 | AIR SUCTION DRUM |
| BLEED PRESSURE (Mpa) | 0.4—0.8 |
| SIZE OF SUITABLE SEEDLING TRAY (LxWxH) | 540mm×280mm×48mm |
The process for vegetable, flower & plant precision sowing:
Functional feature
APPLICATION RANGE
 |
 |
 |
 |

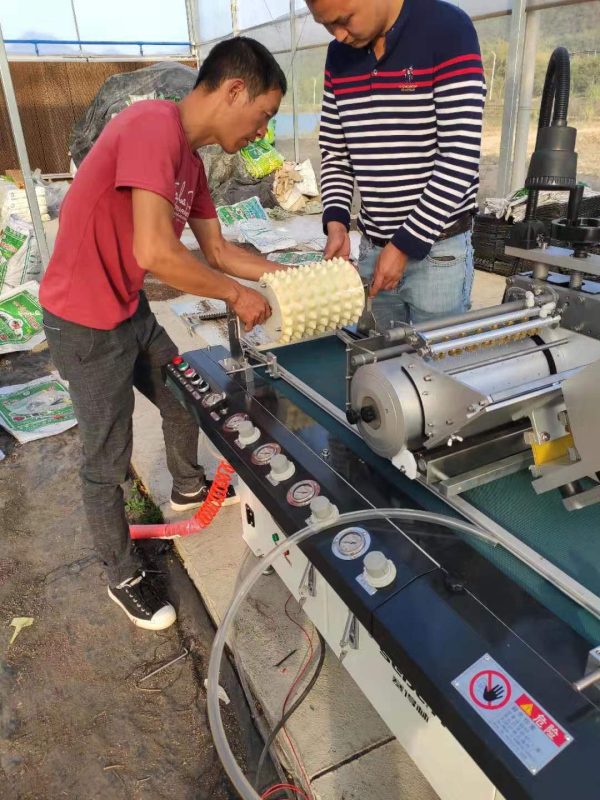

PHYSICAL SHOW
