The KM Industrial is a dedicated agricultural service enterprise based on SEDLIN technology and
production, It’s located in the beautiful Hangzhou.

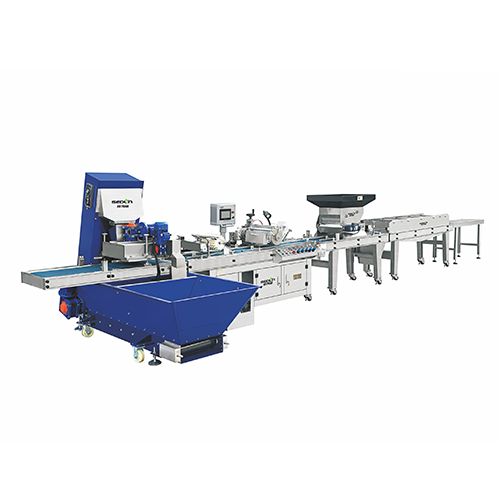

The precision seedling machine line for vegetable, flower & plant is working with air suction drum sowing method. The whole machine line including tray filler, hole drilling, sowing, casing soil and watering realizes sowing and seedling automatic machine line production through adopting Optical-electro-mechanical Integration control, trayless detection innovative technology etc.
| Model No.: | 2YB-G1000 |
| External Dimesion (L x W x H) mm | 9560 x 2400 x 1800 |
| Motor for Dibbler | without Motor |
| seeding accurancy | ≥98 |
| positive hole | ≤1 |
| productivity per hour (h) | ≥500 |
| damage seeds | ≤ 0.1 |
| weight (KGS) | 1600 |
| method of sowing | automatic air suction drum |
| air pressure (Mpa) | 0.4 – 0.8 |
| water | temperature 0 – 40 ℃; pressure 2-4KGS / CM² |
| power | to be confirmed |
| thickness of substrate | 20 – 120 mm |
| thickness of soil | 10 – 20 mm |
| size of tray (L x W x H ) (mm) | W: ≤ 350 H: ≤ 100 |
| type of drive | electrical motor |
| working place | Length: 9-12M; Width: 3-5M; The place for machinery should be hardening treatment; |
| indoor temperature: 0 – 40 ℃ |
Precision sowing process for vegetable, Flower & Plant
Functional feature
Application range
 |
 |
 |
 |
Product details
