The KM Industrial is a dedicated agricultural service enterprise based on SEDLIN technology and
production, It’s located in the beautiful Hangzhou.

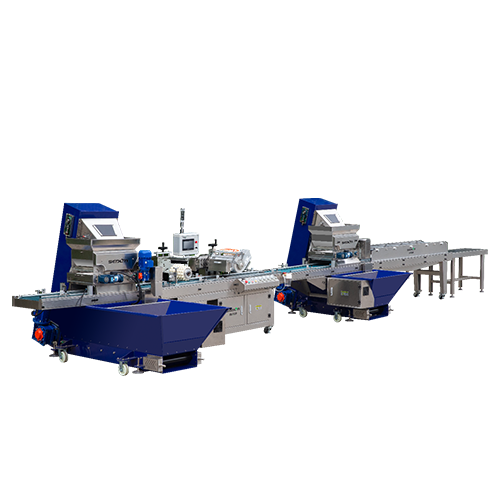

This line of precision seeders uses air-adsorbed drum seeding technology. The entire machine line includes tray filling, drilling, sowing, soil covering, and watering. It realizes automated production of sowing and seedlings through photoelectric, electromechanical integrated control, innovative trayless detection technology, etc.
| Model No.: | 2YB-G1000H |
| External Dimesion (L x W x H) mm | 10300 x 2400 x 1800 |
| Motor for Dibbler | with 2PCS of Servo Motors |
| seeding accurancy | ≥98 |
| positive hole | ≤1 |
| productivity per hour (h) | ≥500 |
| damage seeds | ≤ 0.1 |
| weight (KGS) | 1600 |
| method of sowing | automatic air suction drum |
| air pressure (Mpa) | 0.4 – 0.8 |
| water | temperature 0 – 40 C; pressure 2-4KGS / CM2 |
| power | to be confirmed |
| thickness of substrate (mm) | 20 – 120 |
| thickness of soil (mm) | 10 – 20 mm |
| size of tray (L x W x H ) (mm) | W: ≤ 350 H: ≤ 100 |
| type of drive | electrical motor |
| working place | Length: 9-12M; Width: 3-5M; The place for machinery should be hardening treatment; |
| indoor temperature: 0 – 40 ℃ |
Precision sowing process for vegetable, Flower & Plant
Functional feature
Application range
 |
 |
 |
 |
Product details
